GATE TITAN Drop-In Basic Module (Rear Wired)


Shipping calculated at checkout


Sold Out

TITAN (drop-in mosfet) will transform your AEG into an advanced training weapon system. Gain a tactical advantage thanks to the extremely fast trigger response, with an option of adjusting the AEG for each mission with 20 functions.

TITAN gives you the option to adjust:

  • Trigger sensitivity

  • Pre-cocking boost

  • Fire selector mode

  • Burst mode

  • Rate of fire

  • Low battery warning

  • Battery protection

  • Sniper delay

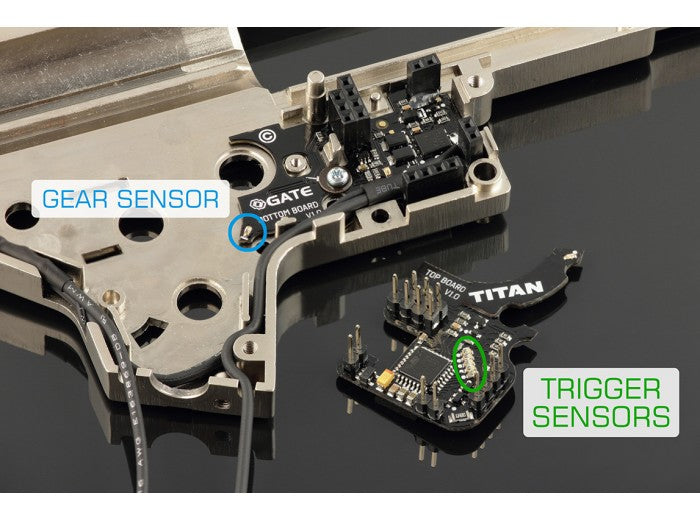

    TITAN has no less than eight sensors!

  • 1 gear sensor

  • 2 selector sensors

  • 5 trigger sensors

    Thanks to the gear sensor you get:

  • Automatic BURST ? there is no need to set burst time. You can set burst between two and 10 shots;

  • Automatic PRE-COCKING ? Pre-cocking is fully operational in SEMI, BURST and AUTO mode and there is no need to set pre-cocking boost manually. You can easily set the pre-cocking as high, mid or low;

  • FULL CYCLE - when the precocking is off, TITAN ensures that the gearbox always makes full cycles.

    You can trust TITAN because:

  • Every time you pull the trigger gearbox completes the correct cycle. The gears stop exactly where they should. The gearbox works efficiently.

  • It is protected against short-circuits, overheating and overloading

  • It protects the battery against over-discharge

  • It significantly improves battery life, rate of fire, spring life and gearbox reliability (when pre-cocking is off)

  • It is compatible with the strongest AEG replicas and batteries (ready to use with LiPo 14.8V, 5000 mAh, 60C)

    Why TITAN is so special?

  • It has a user-friendly configuration via the Tactical Programming Card and/or GATE Control Station

  • It has option to make firmware updates via the internet

  • It has innovative optical sensors instead of mechanical switches that can be prone to faults

  • It replicates a trigger response like in a real gun

  • It replaces the cut-off lever

  • It is compatible with DSG and SSG gears

  • It is compatible with most v2 gearboxes (including cnc) on the market without any modification

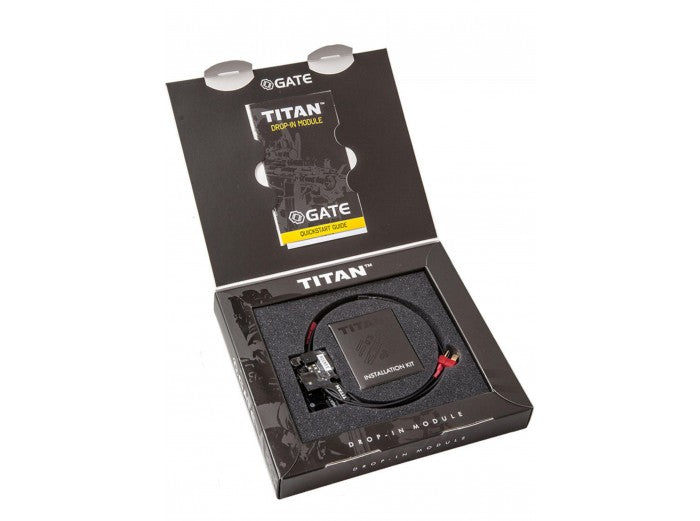

    Kit contents:

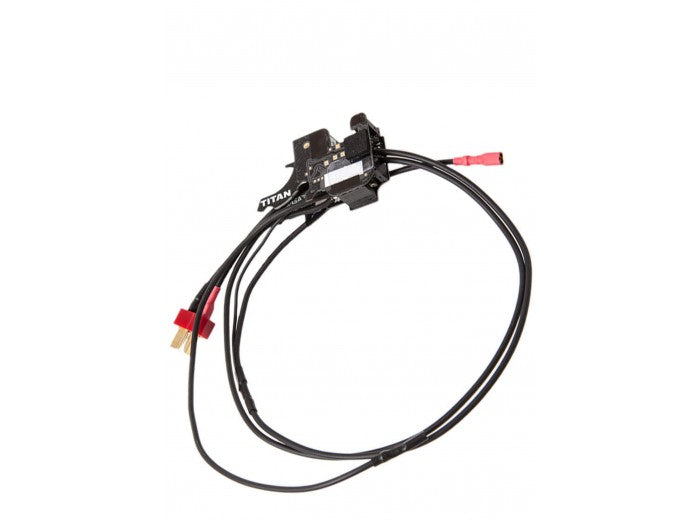

    TITAN Drop-in Module (rear or front wired)
    Installation Kit
    Quickstart Guide

    Notice: To run and set up the Drop-in Module, it is necessary to have the TITAN Tactical Programming Card or USB-Link (both sold separately).

    Here's a link to its manual which is available in English, Spanish, French, Italian and Polish:
